Type: 2/4 High
Roll Width: 7.5"

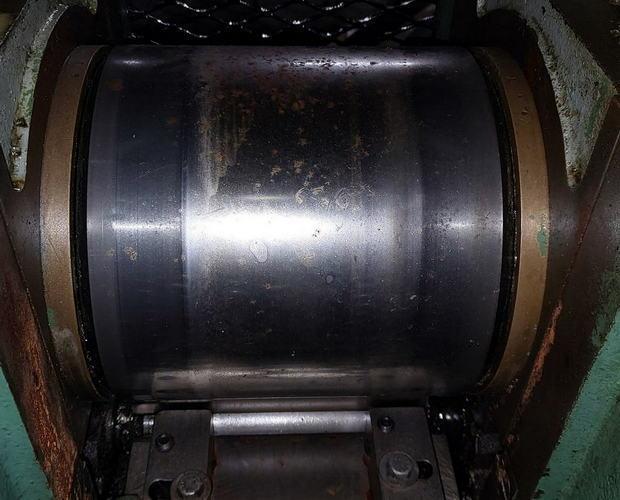

Driven Work Rolls: 2.5" Diameter w/2" Bearing Journal
Idle Back-Up Rolls: 8" Diameter w/4" Bearing Journal

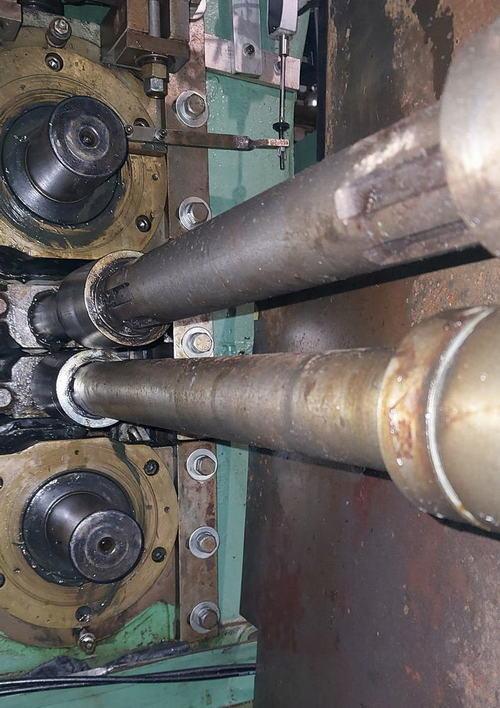

Gear Box Output Shafts for all Four Rolls
Frame Size: 4.5" x 6.5" Each
Total Column Area: ~117 Sq. In.
EQUIPPED WITH:
Bronze Bearings
Herringbone Gears
Gear Box Output Shafts for all Four Rolls
Digital Mitutoyo Roll Position Readouts
Entry and Exit Material Support Rolls (Only One Installed
Currently, but is Included)
Five Vee-Belt Gear Box Input Drive Sheeve
Air over Oil Upper Roll Counter Balance w/ On/Off Switch

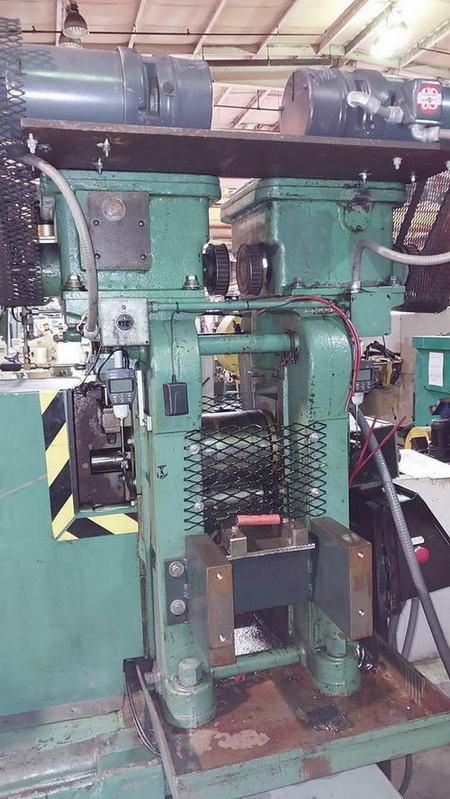

Twin Motor Screw Downs for Roll Gap Adjustment
Adjustments can be Front, Rear, or Both
Forward/Reverse Direction Switch

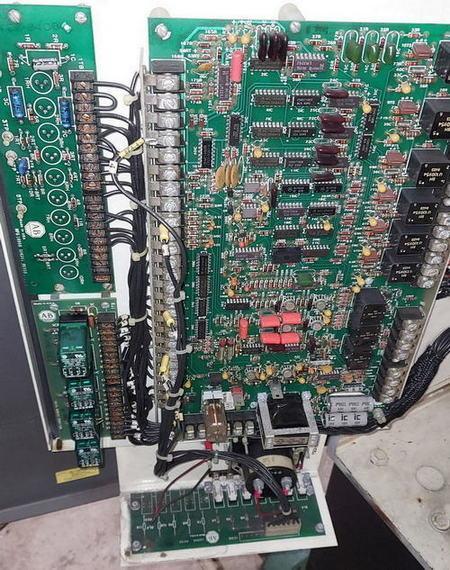

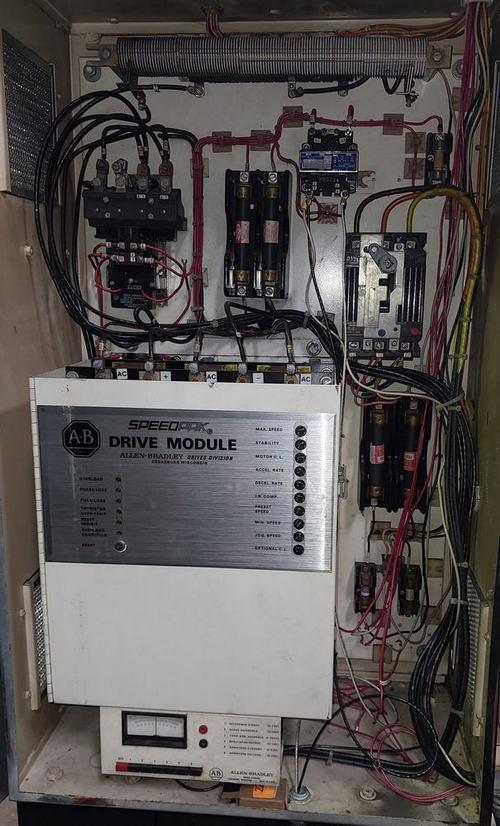

Variable Speed D.C. Drive, Allen-Bradley SpeedPak DC Drive

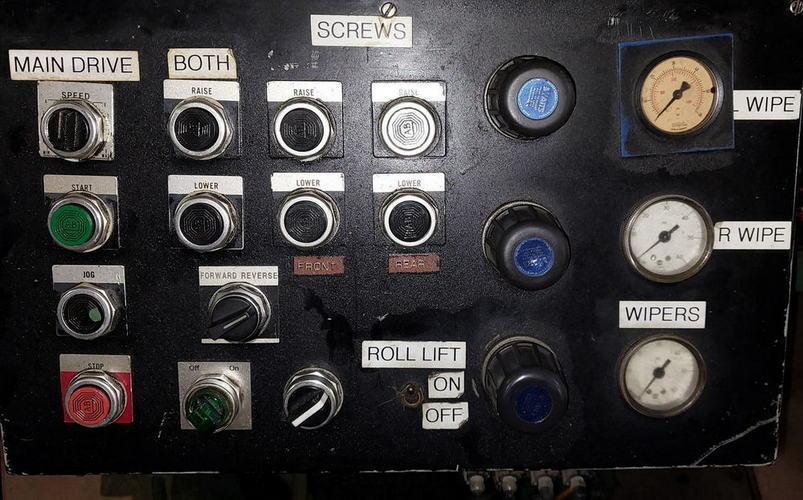

Has Roll Wipe Pressure Controls
Clutch & Brake Adjustable Pressure
MOTORS: 20 HP DC, Two 2 HP Screw Adjustment Motors
WEIGHT: 15,000 Lbs. (Approximate)
