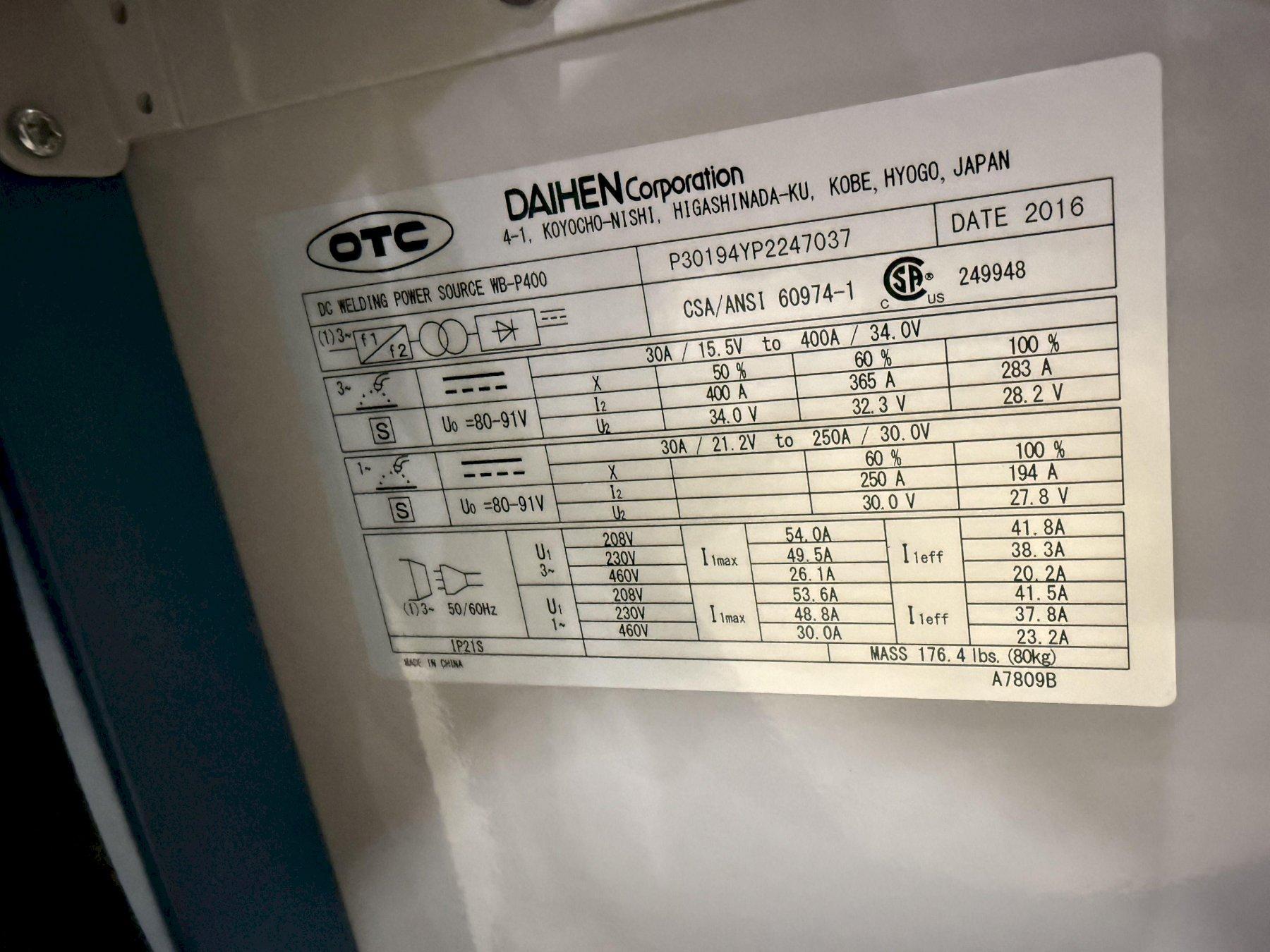

| Number of phases | 3 |
| Rated frequency | 50/60Hz |
| Rated input voltage | 208/230V, 460V |
| Input voltage range | 208/230V ±10%, 460V ±10% |
| Rated input power | DC 18.2/18.0kVA 16.3/16.8kW Pulse 19.6/19.7kVA 18.1/18.1kW, DC 19.0kVA 17.9kW Pulse 20.7kVA 18.5kW |
| Rated input current | DC:50.5/45.0A Pulse:54.3/49.5A; DC:23.8A, Pulse:25.9A |
| Rated output current | 400A |
| Rated load voltage | 34.0V |
| Rated output current range | 30 - 400A |
| Rated output voltage range | 12.0 - 34.0V |
| Maximum no-load voltage | 83/92V, 80V |
| Rated duty cycle | 60%(DC), 50%(Pulse) @ 400A |
| Number of welding conditions | 100 |
| Operating temperature range | 14º F to 104º F (-10 to +40º C) |
| Operating humidity range | less than 50%, 104º F (40º C), less than 90%, 68º F (20º C) |
| Storage temperature range | -13º F to +131º F (-25 to +55º C) |
| Storage humidity range | less than 50%, 104º F (40º C), less than 90%, 68º F (20º C) |
| Dimensions (W x D x H) | 15.6 x 28.0 x 31.9 in. (395 x 710 x 810 mm) |
| Mass | 176.4 lbs (80 kg) |
| Rated input power for DC TIG scratch start | 14.8kVA 12.6kW / 14.5kVA 12.6kW / 14.5kVA 13.0kW |
