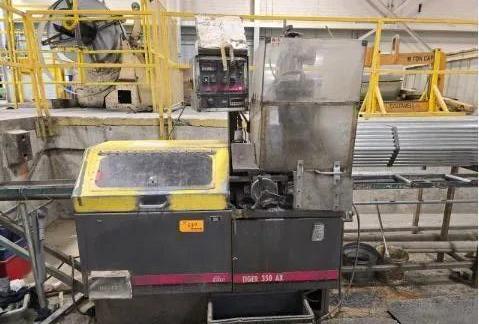

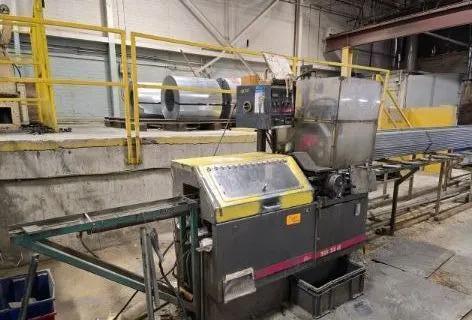

DAKE MEP Tiger 350 AX Miter Automatic Cold Saw
Model: Tiger 350AX
Serial #: 006039 TTR
Maximum Blade Size: 13-3/4″
Capacity @ 90° Round: 4-1/2″
Capacity @ 90° Square: 3-3/4″
Vise Opening: 7-1/2″
Blade Speeds: 15/30/45/90 RPM
Maximum Length of Feed: 24″
Motor HP: 3/2.4HP
Electrical: 460V/3PH
Equipped With:

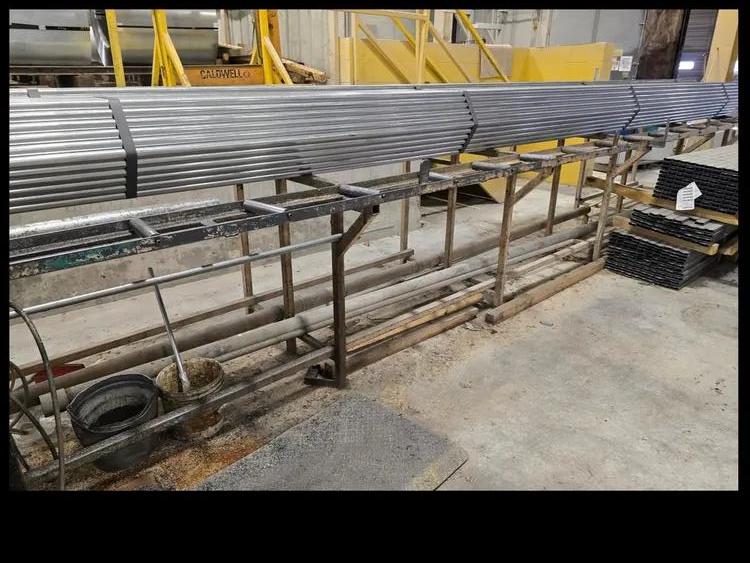

Air Vise on Bar Feed & Air/Manual Vertical/Horizontal Vise on Saw, Auto Bar Feed with 24″ Maximum Feed Stroke, Multi-Indexing, Manual & Auto Cutting Cycles, Adjustable Stop for Head Downfeed, Coolant Pan & Pump, 2-Speed Motor
