90 Ton FARGER & JOOSTEN MULTIPOWER Air/Oil Press

Manufacturer
Not Specified

Model

Stock #
Z23009L

Year

Equipped With

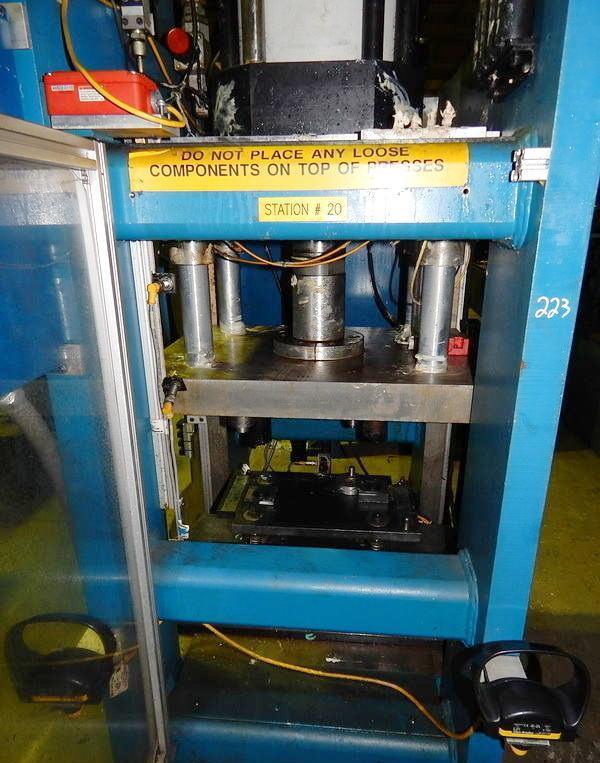

90 Ton FARGER & JOOSTEN MULTIPOWER Air/Oil Press

 Serial Number: 2727
 SPECIFICATIONS:

       Built for Side-to-Side Feed

       Tonnage, Est.:  90 Ton

       Stroke:  7.9", the last .79" is the Power Stroke
       Daylight Opening:  26"
       Bed:  24" LR x 17" FB x 2" Thick
       Ram:  24" LR x 17" FB x 2-1/2" Thick

       Force in Approach Stroke:  17.4kN
       Force in Retract Stroke:  16.3kN
       Force in Power Stroke:  457kN

       Pass Line, Floor to Top of Bed:  24"
       Windows, Both Sides, On Center of Bed:  18"
       Side Frame, Thickness:  2"
       Distance Inside Side Frames:  20"

 OVERALL DIMENSIONS:  36" LR x 54" FB x 132" High
