STROKE 20"
SHUT HEIGHT 30" - 42"
WINDOWS 58"
SPM 15-40
800 TON
1995 YEAR
1/2" OFF BOTTOM RATED
12" ADJUSTMENT
BED 168" X 84"

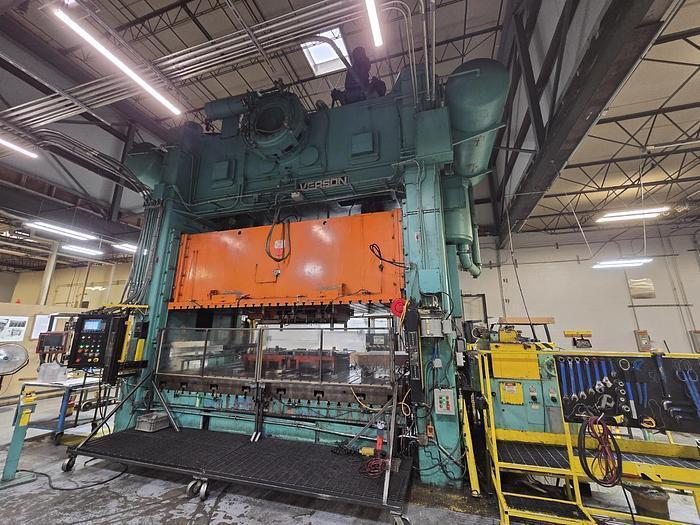

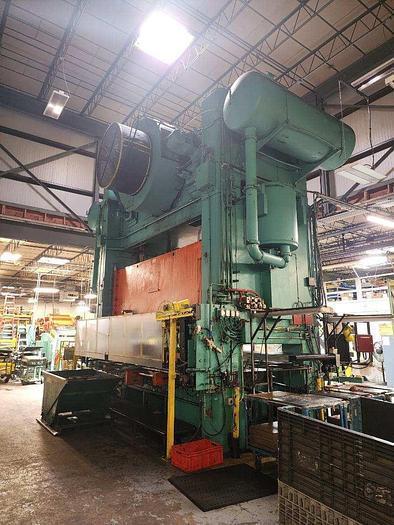

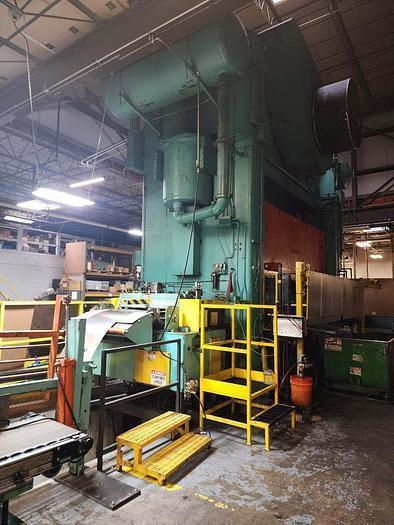

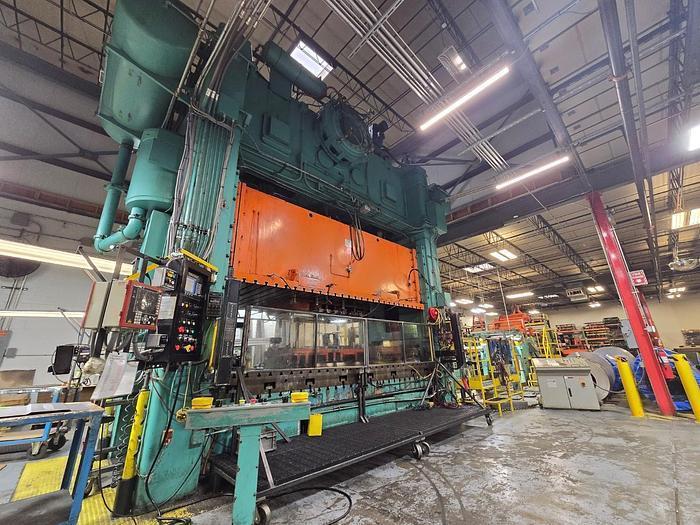

he 1995 Verson Model S4-800-168-84T Straight Side Press, paired with a 42" COE Feed Line, is a robust piece of industrial machinery offering an excellent capacity for demanding tasks. With an 800-ton capacity, the press is capable of delivering between 790 tons of energy at 15 strokes per minute, with the drive supporting a rate of 15-40 strokes per minute. The bed and slide area measure 168" left to right and 84" front to back, with a motorized slide adjustment allowing a maximum stroke length of 20".
-
Equipped with advanced safety and control features, this machine includes Link Press Controls Model 5000, hydraulic overload systems, and safety enhancements such as Black Max light curtains and Wintriss 16-channel die protection. Additionally, it comes with features like a rolling bolster, currently stationary but adaptable for overhead crane use, making it versatile for various operational needs.

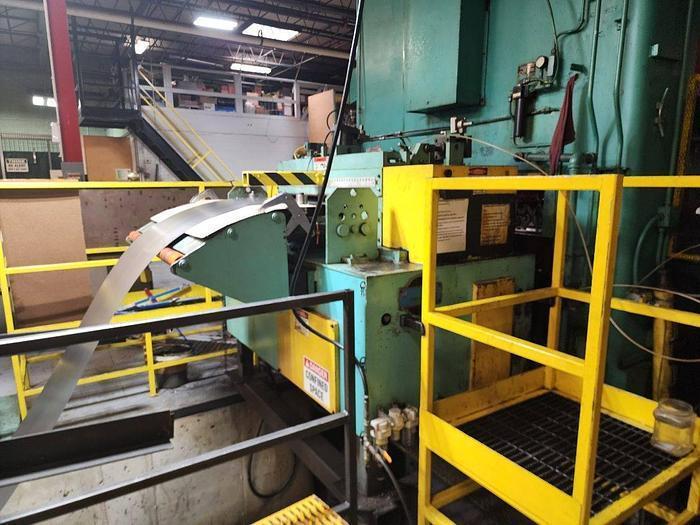

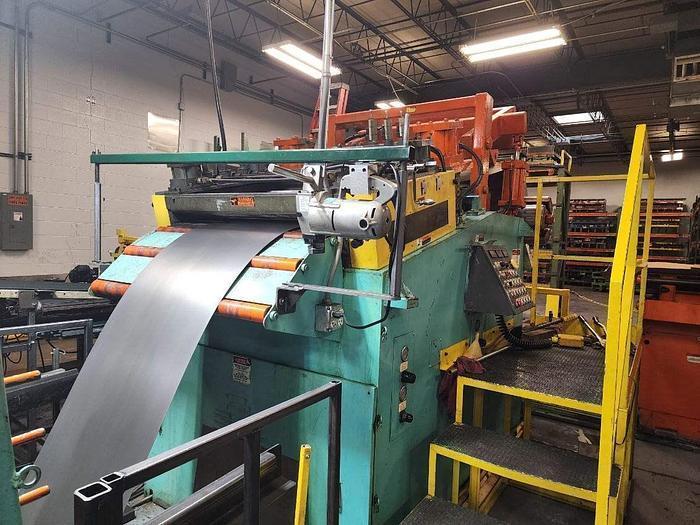

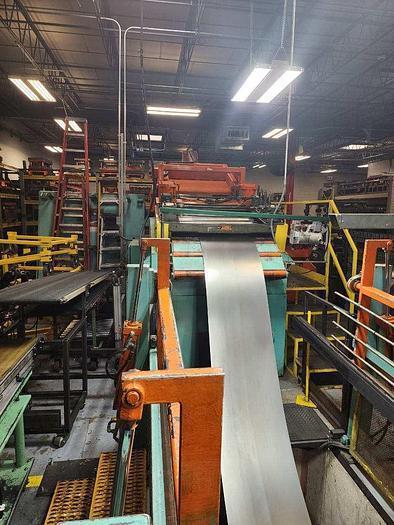

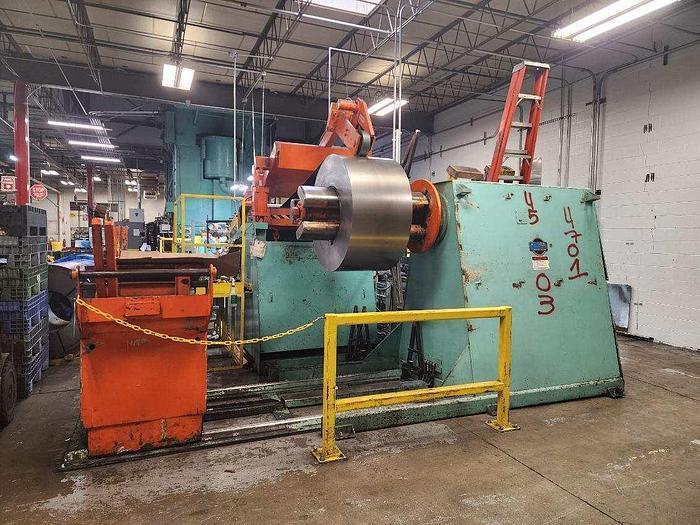

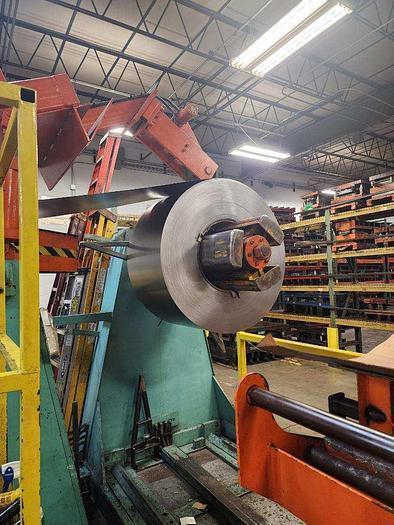

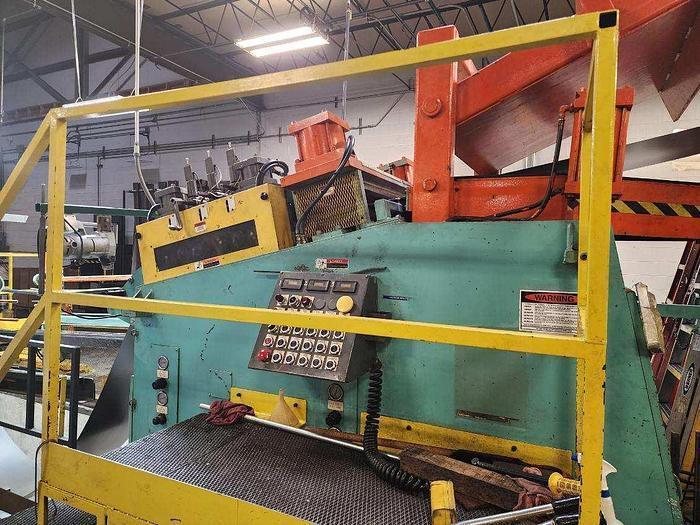

The COE Feed Line, including models such as the CPRF-542 feeder and CPR-PO-20042 uncoiler, is well-suited for processing materials up to 42" wide with a maximum coil capacity of 20,000 lbs. This setup allows for efficient material handling, enhancing the productivity of the press. The equipment is sold "as is, where is," offering a formidable solution for industrial pressing applications.
