8 Ton FARGER & JOOSTEN MULTIPOWER Air/Oil Press

Manufacturer
Not Specified

Type
Presses, Air

Model

Stock #
Z23009B

Year

Request a Quote

8 Ton FARGER & JOOSTEN MULTIPOWER Air/Oil Press

SPECIFICATIONS
FILES & ATTACHMENTS

Equipped With

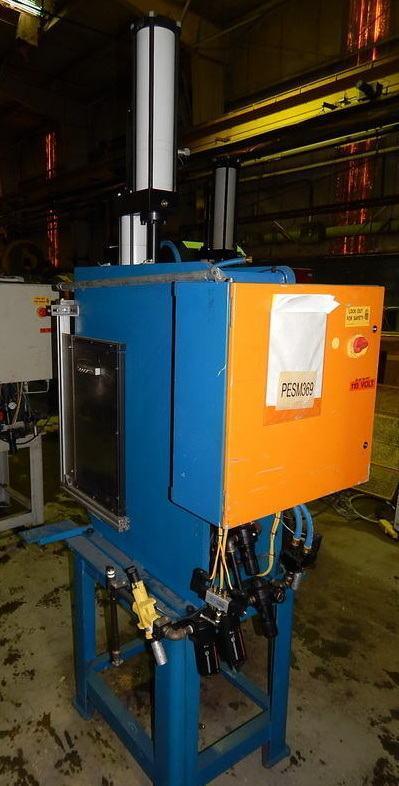

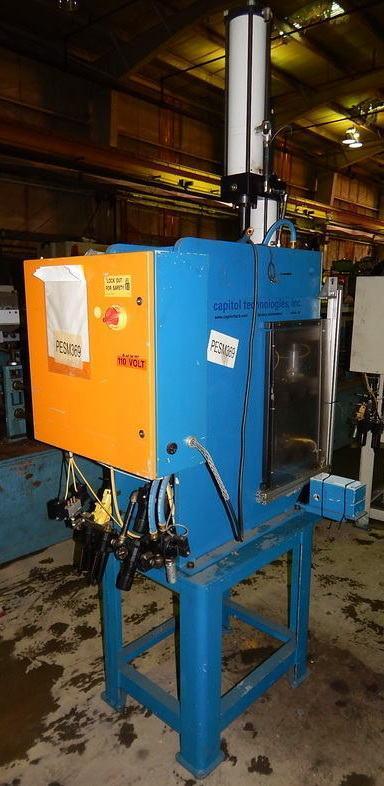

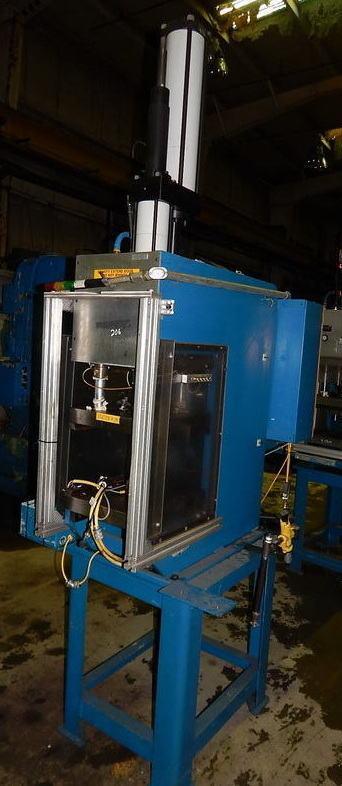

8 Ton FARGER & JOOSTEN MULTIPOWER Air/Oil Press

Serial Number: 2770
SPECIFICATIONS:

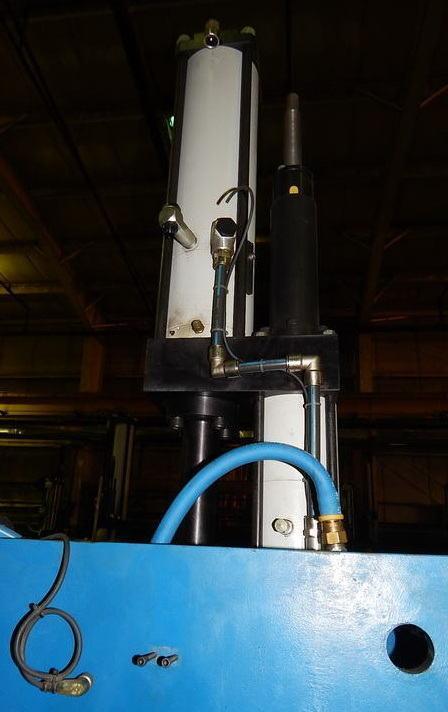

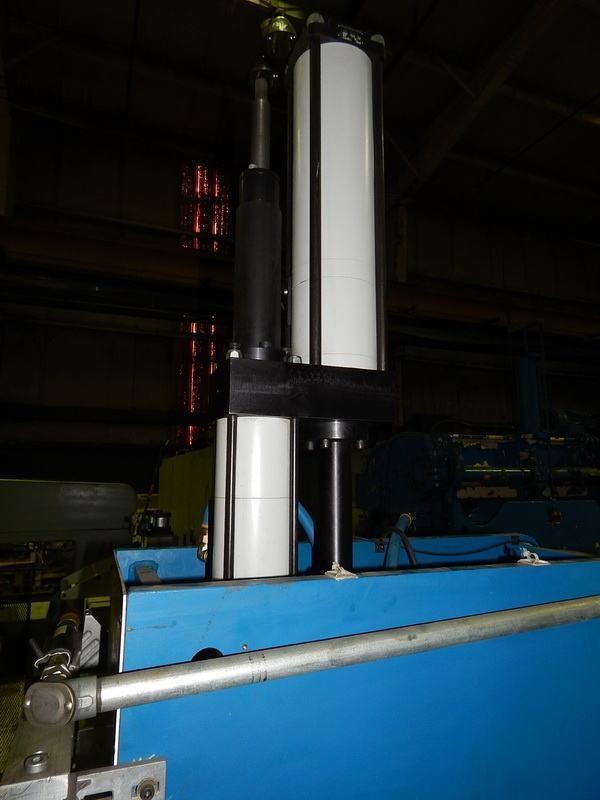

This is a Multipling type Air over Oil Press
See: https://farger-joosten.de

C-Frame Design

Tonnage: 8 Ton

Stroke: 7.9" (adjustable), the last .79" Power Stroke
Daylight Opening: 13"

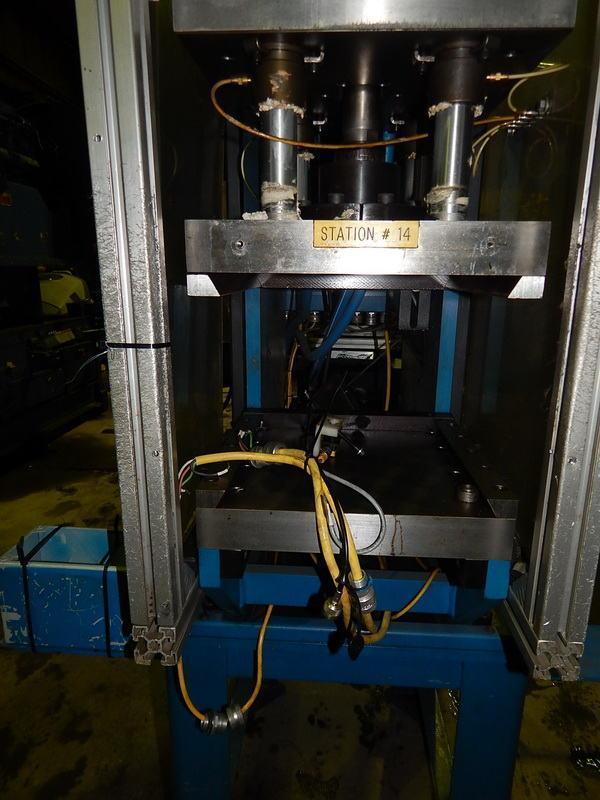

Bed & Ram: 14" x 14" x 2" Thick

Force in Rapid Approach Stroke: 742 Lbs.
Force in Retract Stroke: 742 lbs.
Force in Power Stroke: 8 tons (US)

Pass Line, Floor to Top of Bed: 40"

NOTE: Power Unit is Fully Supported through Schmidt Presses,
Cranberry, PA

OVERALL DIMENSIONS: 34" LR x 50" FB x 125" High
