| Stroke | 10 inches |
| Daylight | 24" |
| Ram Size | 4.5" x 5.5" RAM THREAD |
| Bed Size | 31" x 23" |
| Throat | 10" |
| Year | 1997 |
| Floor Sanding | yes |
| Motor HP | 15 |

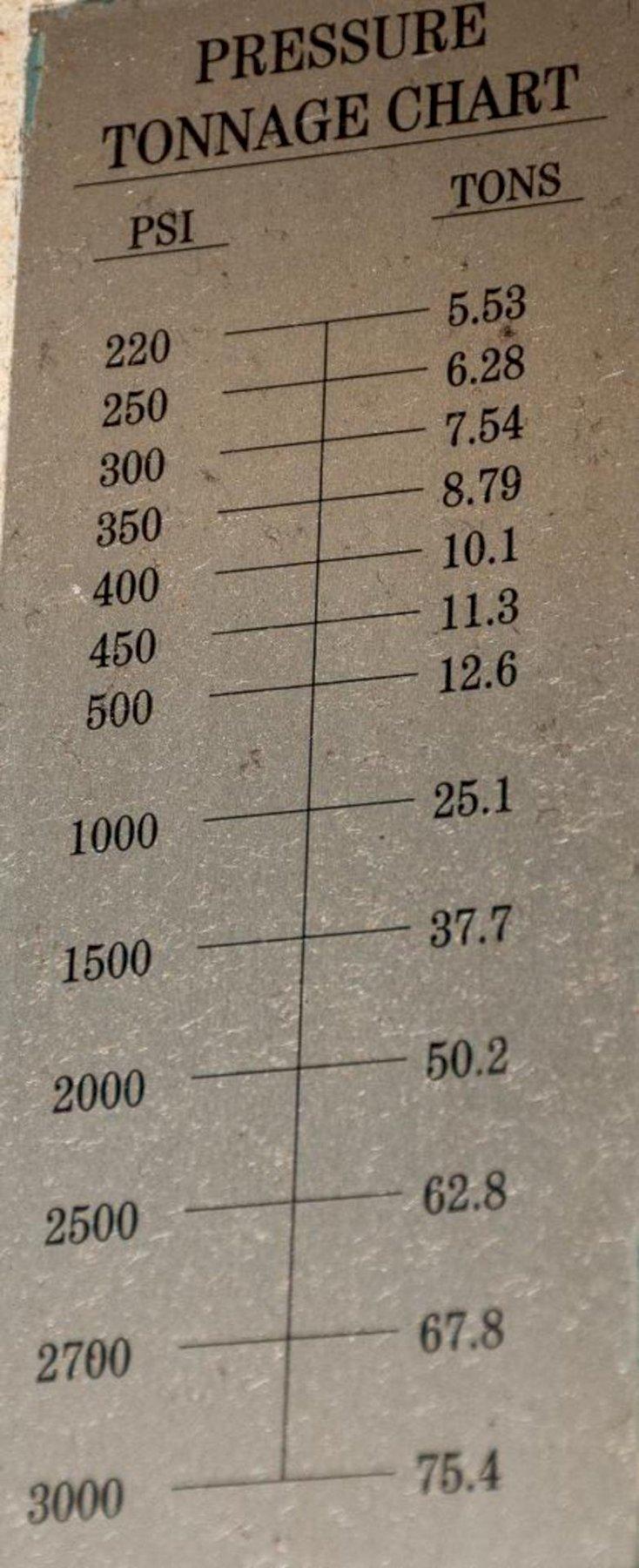

| Maximum operating presssure | 3000 PSI |
| Reservoir Capacity | 150 GALLONS |
| Cylinder Diameter | 8" |
| Fast Approch Speed | 340 IPM |
| Pressing Speed | 37 IPM |
| Return Speed | 304 IPM |
| Approximate Dimensions | 40" x 75" x 97"T |
| Approximate Weight | 8100 LBS |
