60" x .105" x 23,000 LBS RED BUD CUT TO LENGTH LINE

Manufacturer
RBI

Model

Stock #
14006A

Year
1985

Equipped With

CAPACITY: 0.105" MILD STEEL
LINE DIRECTION: RIGHT TO LEFT

ENTRY COIL CAR:
23,000 LB CAPACITY
MODEL:  CC 30
SERIAL #:  CCF85-M0056
36" LONG "V" CRADLE
42" L x 36" W x 26" H OVERALL DIMENSIONS

UNCOILER:
23,000 LB CAPACITY
MODEL: RM-60-24
SERIAL #:  SRF85-M0056
62" FACE MANDREL
20"-24" COIL I.D. RANGE
HYDRAULIC WEDGE TYPE EXPANSION
HYDRAULIC THREADING DRIVE
AIR CYLINDER OPERATED DISC BRAKE
POWERED HOLD DOWN ARM
146" L x 77" W x 105" HIGH OVERALL DIMENSIONS

PEELER TABLE:
ATTACHED TO STRAIGHTENER

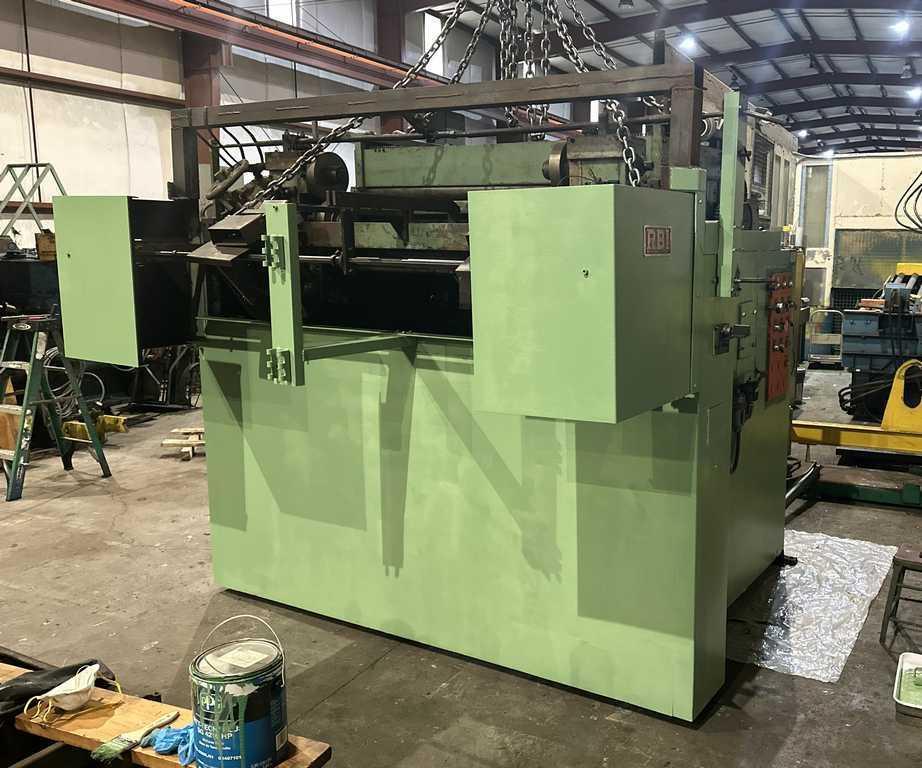

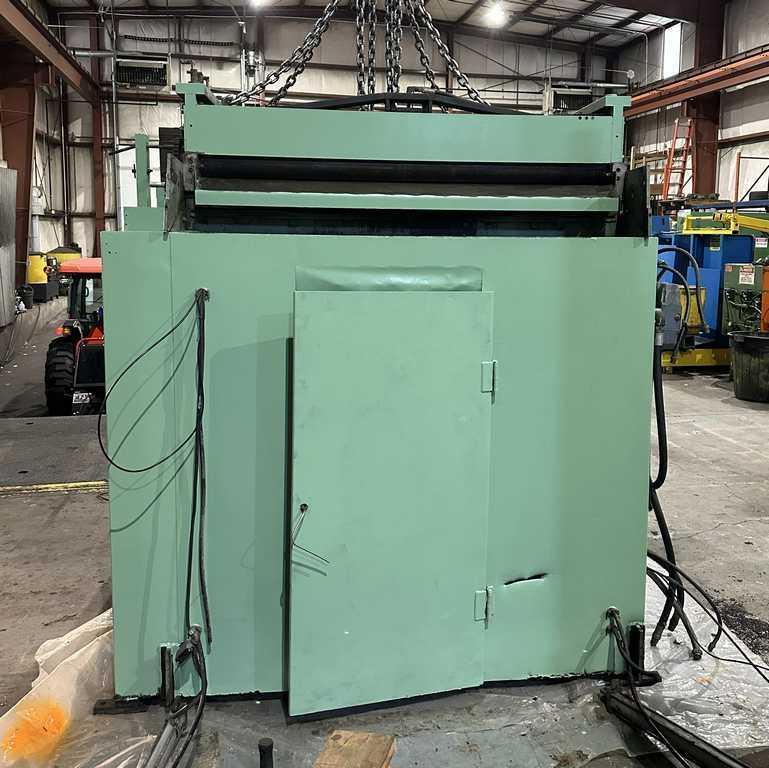

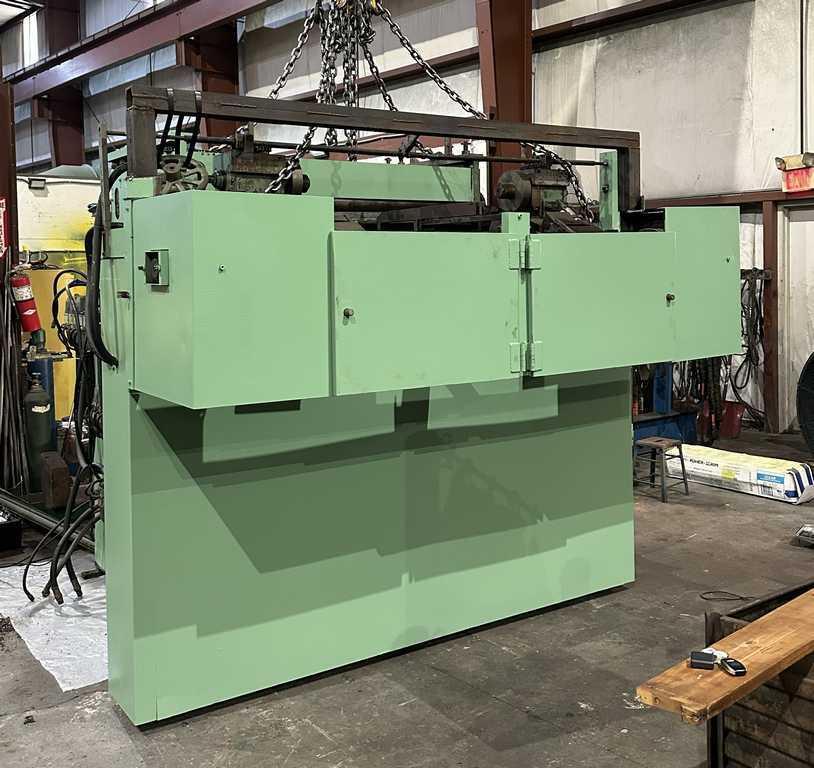

STRAIGHTENER / EDGE TRIMMER UNIT:
60" x 0.105" CAPACITY
MODEL:  SM560
SERIAL #:  SSF85-M0056
ENTRY DRIVEN PINCH ROLLS
7 WORK ROLLS, 3 OVER 4
EXIT DRIVEN PINCH ROLLS
HYDRAULIC DRIVE
DOUBLE STUB EDGE TRIMMER:
MODEL:  ET 10-60
SERIAL #:  ETF85-M0056
POWERED WIDTH ADJUSTMENT
DUAL SCRAP CHOPPERS
COMMON DRIVE WITH STRAIGHTENER
109" L x 105" W x 90" HIGH OVERALL DIMENSIONS

GRIP FEEDER:
60" x 0.105" CAPACITY
MODEL:  FMP 9HD-60-72
72" MAXIMUM STROKE LENGTH
CYLINDER TYPE DECELERATION
CAM FOLLOWER MATERIAL GUIDES
HYDRAULIC GRIPPER
152" L x 102" W x 52" HIGH OVERALL DIMENSIONS

SHEAR:
60" x 0.105" CAPACITY
MODEL:  G18L-60
SERIAL #::  SHF85-M0056
HYDRAULIC ACTUATED
84" L x 27" W x 83" HIGH OVERALL DIMENSIONS

MAIN HYDRAULIC POWER UNIT:
50 HP AC MOTOR
230/ 460V
60" L x 52" W x 83" HIGH OVERALL DIMENSIONS
