Rowe Space Saver Complete Coil Feed Line Specifications:
Coil weight capacity: 20,000 Lbs.
Coil width capacity: 60"
Stock thickness capacity: .105" x 60" Wide
Stock thickness capacity: .187" x 20" Wide
Expansion range: 15.5" - 19.5"
Coil OD capacity: 80"
Rowe Space Saver Complete Coil feed Line Equipment and Features:

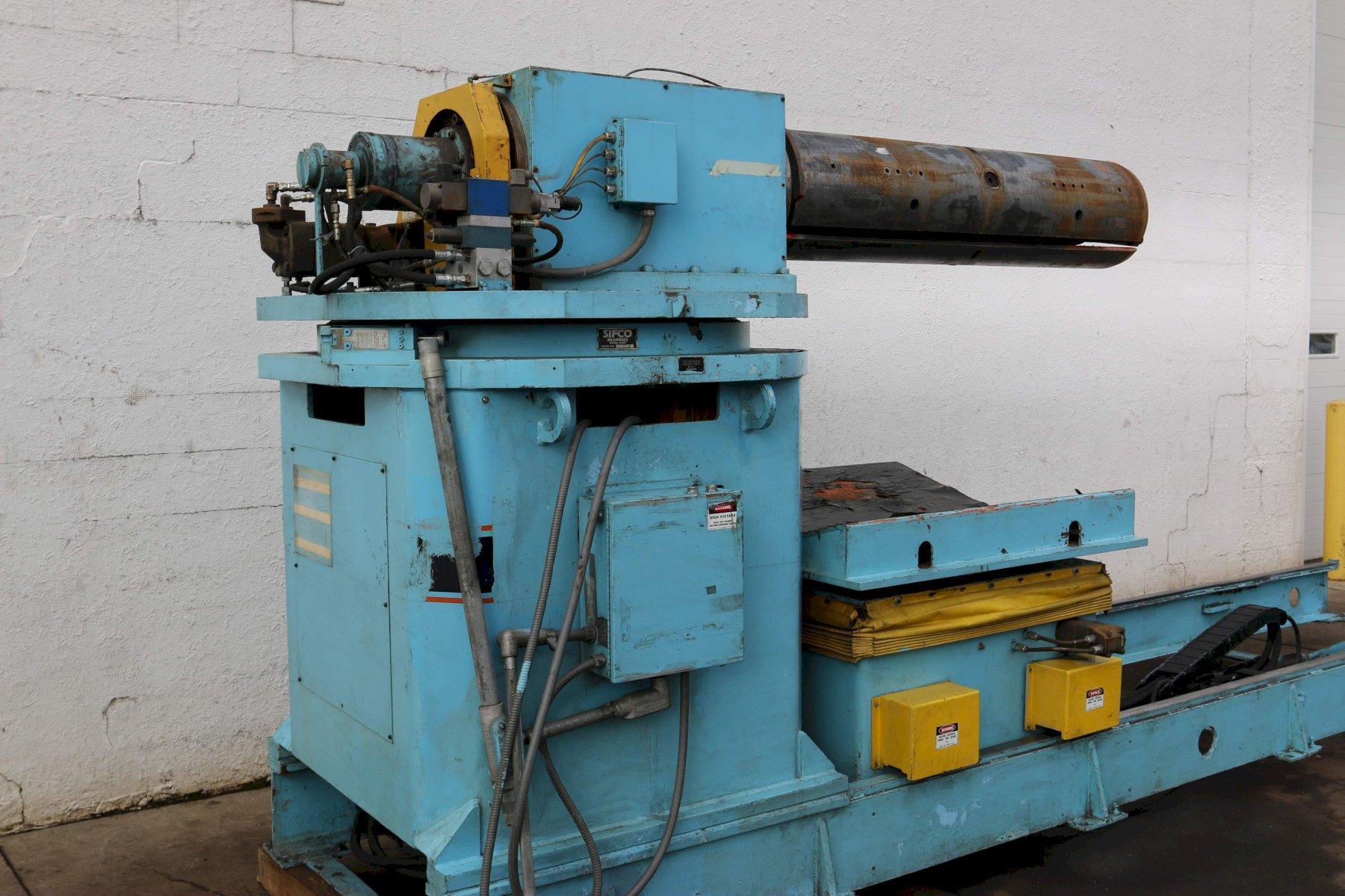

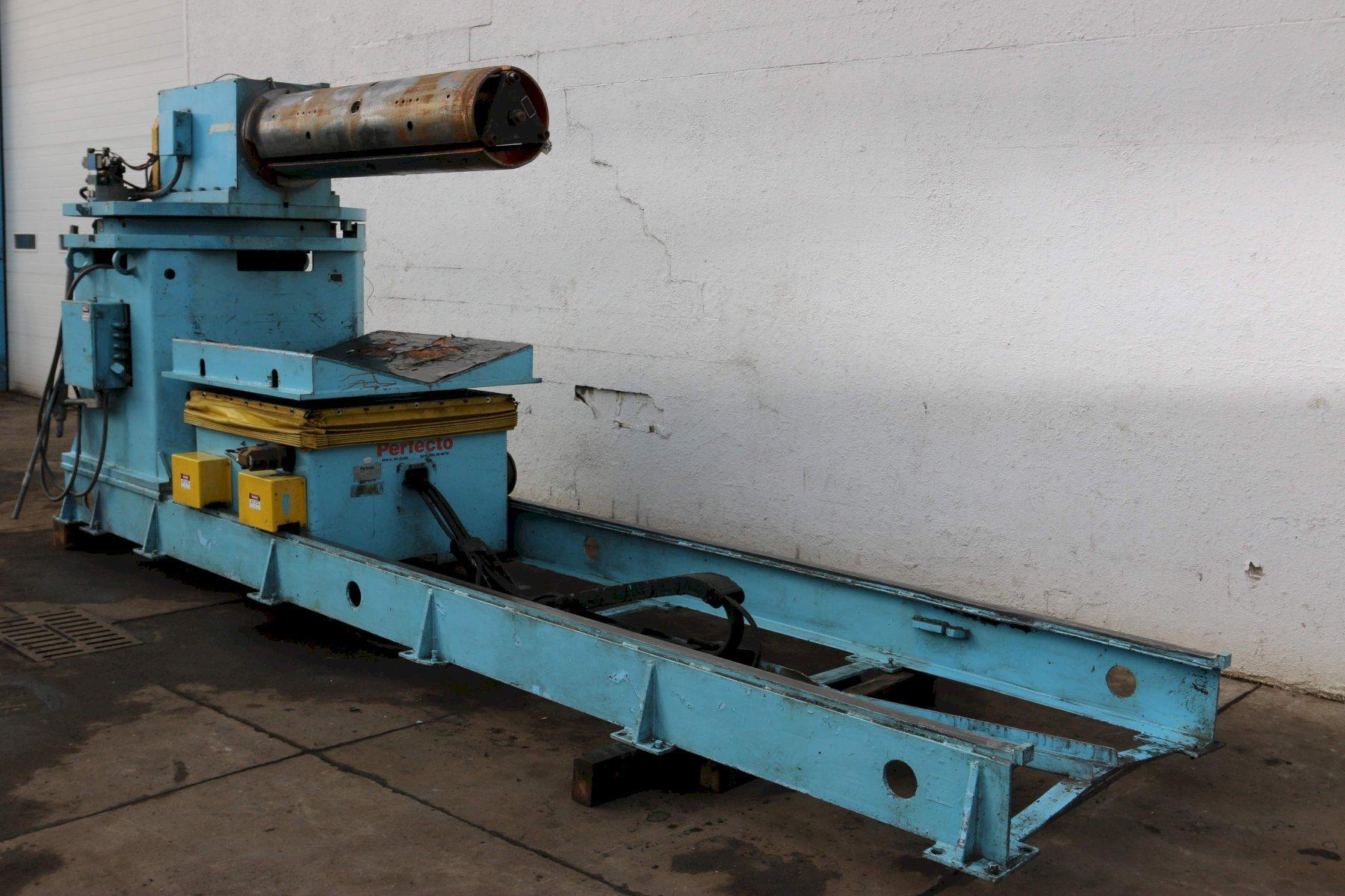

30,000 LBS X 63" PERFECTO COIL REEL & CAR
Model rs 30 63
1986
30,000 lb capacity
63" max coil width
80" O.D.
15.5"-19.5" I.D. *being confirmed by perfecto*
hydraulic driven
thread up drive
motor hydraulic
coil car
18" lift
11' horizontal travel
*reel not original to line will need to be wired in

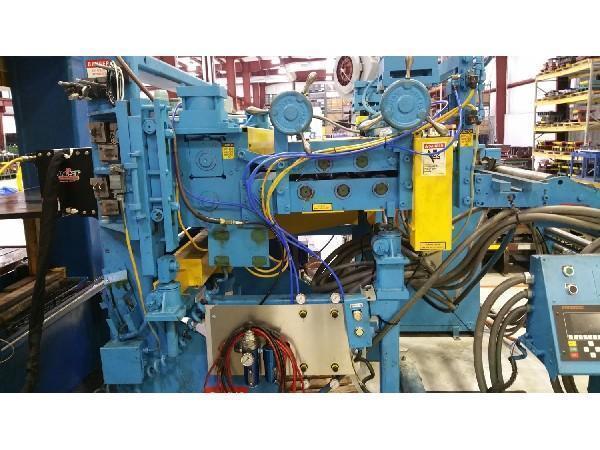

Rowe Servo Feeder Straightener Combination Press Feed Model No.: FST-AC-3-60
Upper and lower servo feed rolls x six inch diameter
Air operated upper servo feed roll lift and pilot
Coil straightening rolls (5) x 4.5 inch diameter
Air operated upper coil straightening roll bank pilot lift
Powered coil straightener pinch rolls for stock threading
Entry cascade loop support rollers
Adjustable stock width edge guides (three roll design)
Adjustable pass line
Motorized pass line adjustment
AC Servo roll feed drive and control package
Operator's interface and control station
