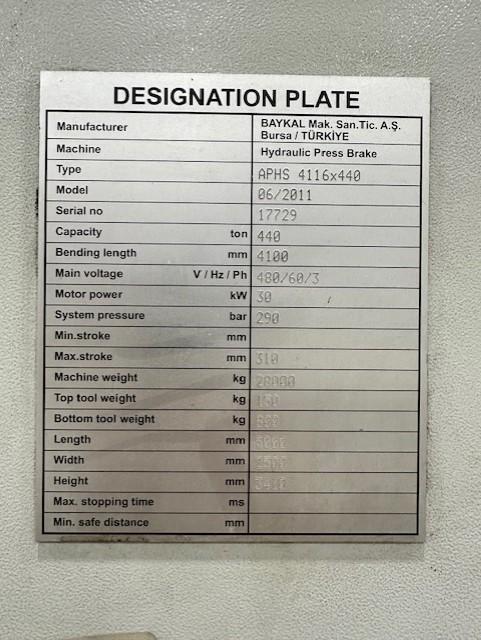

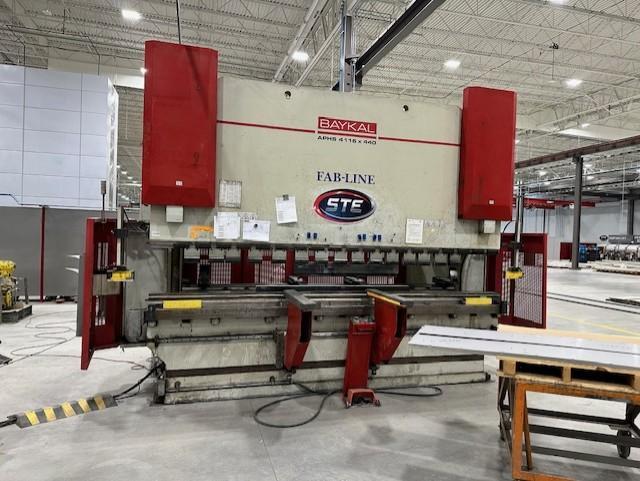

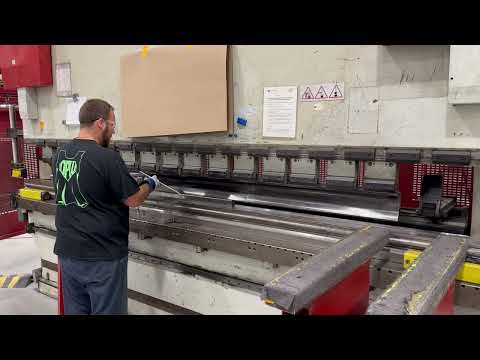

MODEL: APHS 4116×440
CAPACITY: 13′ 5” X 480 TON
SERIAL NO.: 17729
OVERALL BENDING LENGTH: 13’ 4”
DISTANCE BETWEEN HOUSINGS: 11’ 7”
STROKE OF RAM: 12.6”
OPEN DAYLIGHT: 23.2”
SPEED: ADVANCE: 189 IPM
SPEED: PRESSING: 23 IPM
SPEED: RETURN: 165 IPM
MAXIMUM TRAVEL OF BACK GAUGE: 29.5” + 9.8” (second stop)
TABLE WIDTH: 15”
DISTANCE FLOOR TO TOP OF BED: 43.5”
THROAT DEPTH: 19.7”
CROWNING

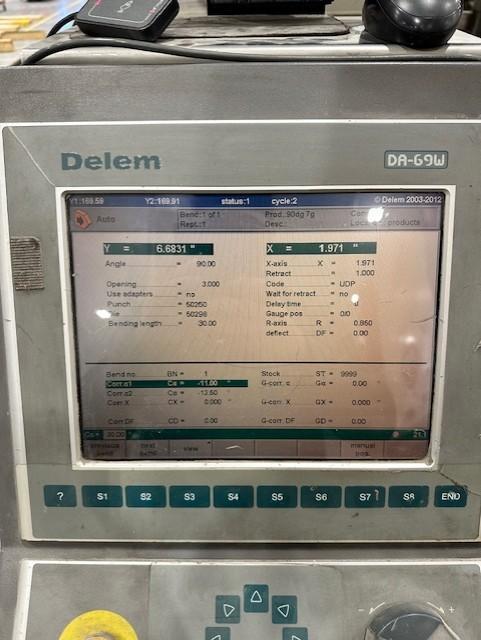

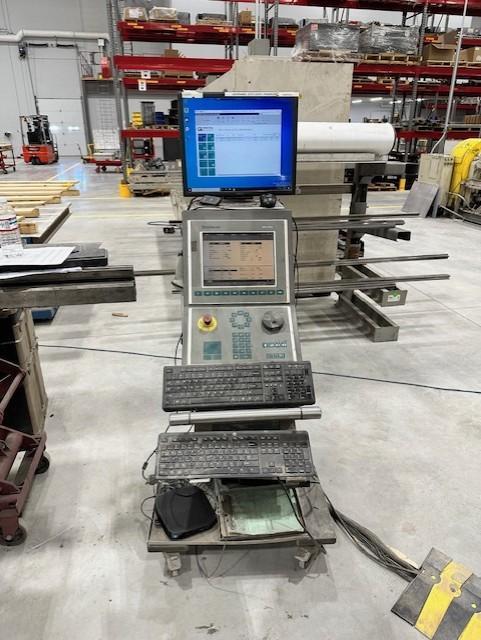

DELEM DA-69W CONTROL
85 GALLON OIL TANK
YEAR: 2011
MOTOR: 40 HP
460V
WEIGHT: 60,000 LBS (approx)
DIMENSIONS (LxWxH): 200″ x 90″ x 138″
