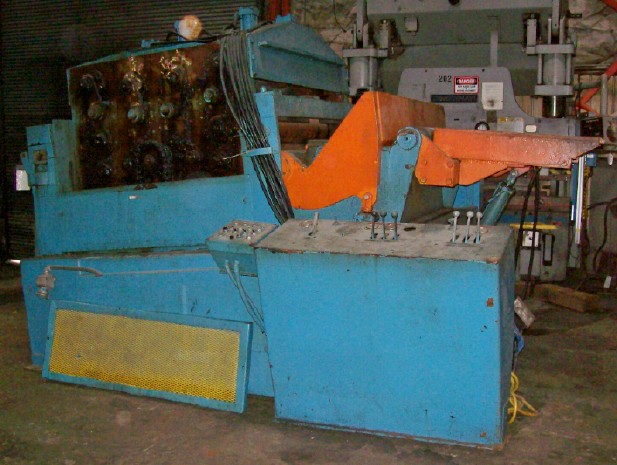

40,000 x 60" AMERICAN STEEL LINE UNCOILER STRAIGHTENER COMBINATION

Manufacturer
AMERICAN STEEL LINE

Type
Uncoilers

Model

Stock #
16011A

Year

Equipped With

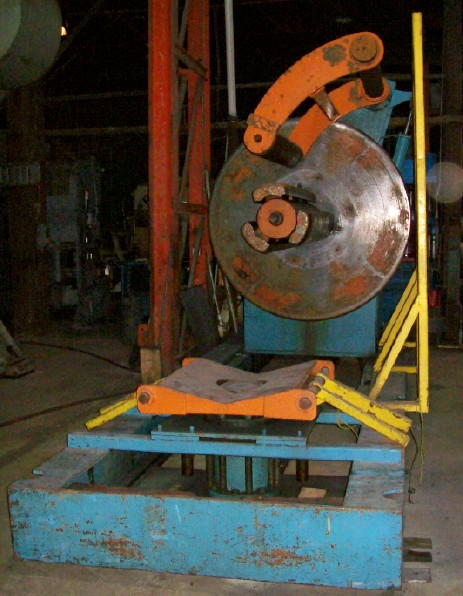

UNCOILER:
MODEL #:  1000
SERIAL #:  5867
19"-24" ID
72" OD
60" MANDREL LENGTH
TRAVELING REEL WITH COIL LIFT
HYDRAULIC EXPANSION
MOTORIZED WITH AIR CLUTCH AND BRAKE
FULL BACKER PLATE
60" SNUBBER ROLL

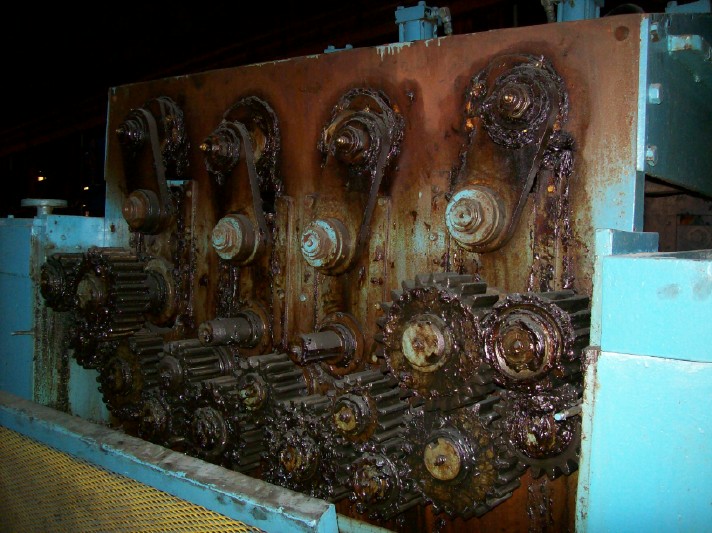

STRAIGHTENER:
MODEL #:  5-5
SERIAL #:  5917
.120" - .200" CAPACITY AT 60" WIDTH
.120" - .260" CAPACITY AT 36" WIDTH
(5) 5" DIAMETER STRAIGHTENING ROLLS
HYDRAULIC ADJUSTMENT ON UPPER ROLLS
8" DIAMETER  ENTRY AND EXIT PINCH ROLLS
UPPER ROLLS HYDRAULICALLY DRIVEN
BOTTOM AND PINCH ROLLS POWERED INDIVIDUALLY
END DE-BENDER

** A NEW SERVO FEEDER CAN BE SOURCED TO MAKE THIS A COMPLETE SERVO FEED LINE
PEELER TABLE
40 HP MOTOR AND CONTROLS
FOR ADDITIONAL $100,000
