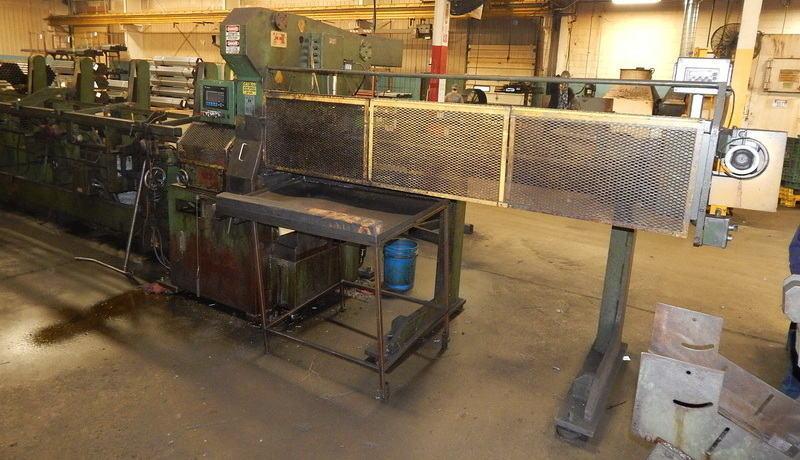

Machine will Automatically Trim Cut Incoming Random
Tube from Unscrambler (Optional)
Capacity, Round: 1/2" to 3"
Capacity, Square: 2-1/8"
Cut Length, Max.: 118" (3000mm)
Cut Length Tolerance: +/- .010"

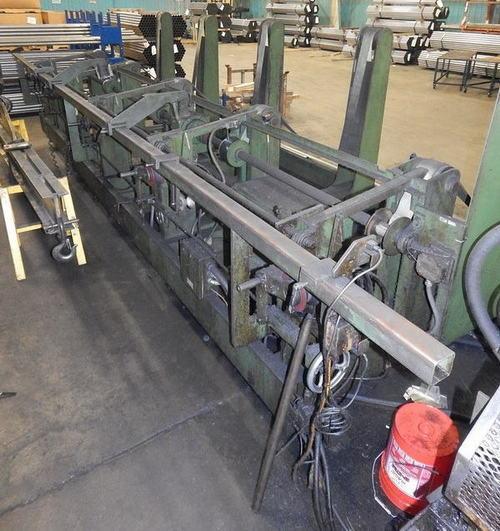

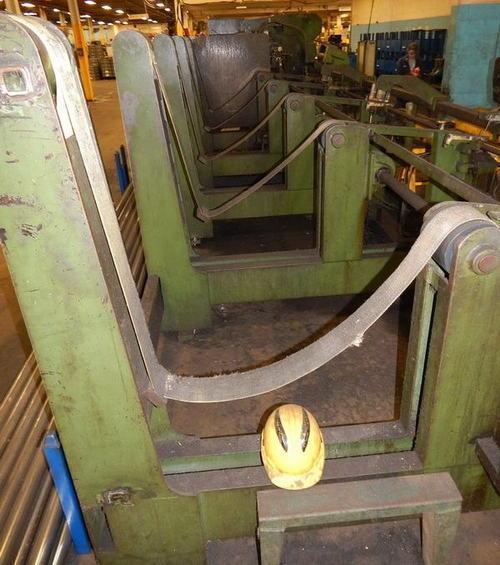

Bundle Descrambler, Incoming Tube Length: 10' to 25'
EQUIPPED WITH:
Dual Pairs of Urethane Feed Rolls
Cut Blade Flood Lubrication
Digital Length Indication with Motorized Length
Adjustment and Manual Fine Adjustment

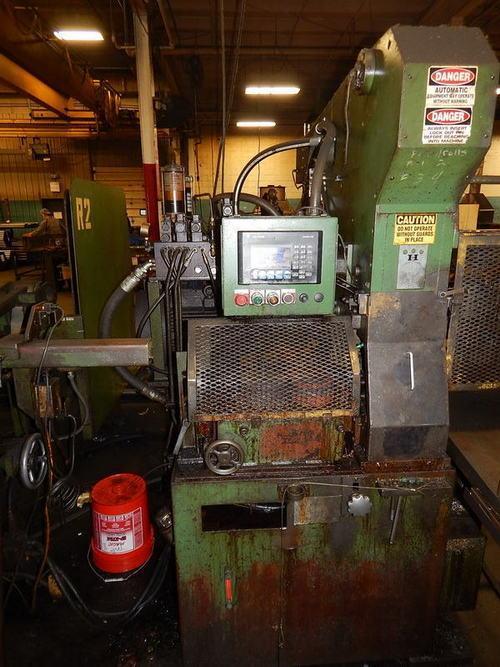

Allen-Bradley PLC Controls, SLC 503 CPU
Allen-Bradley PanelView 550 Operator Interface
Complete Set of Electrically Interlocked Guard System
Multiple Sets of Feed Rolls, Clamps and
Horizontal Blade Holders
Long Cut-Length Guide Rolls
Air Cooled Hydraulic System
Automatic Machine Lube System
New High Speed Hydraulic Pump
ALSO AVAILABLE:
3" x 80" BURRMASTER Model 1 Deburring Machine (ADDITIONAL PRICE)
