Equipped With
AGE: 2001
MODEL NUMBER: G5024W1R1B0
SPECIFICATIONS:

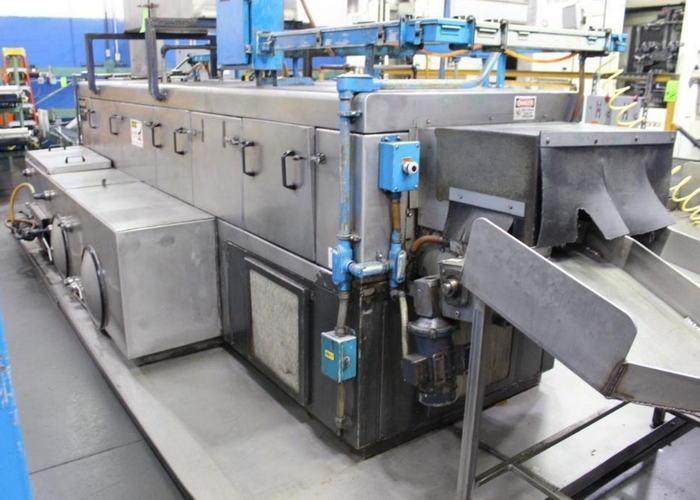

3 Stage Washer
Stainless Steel Construction
Belt Width: 24"

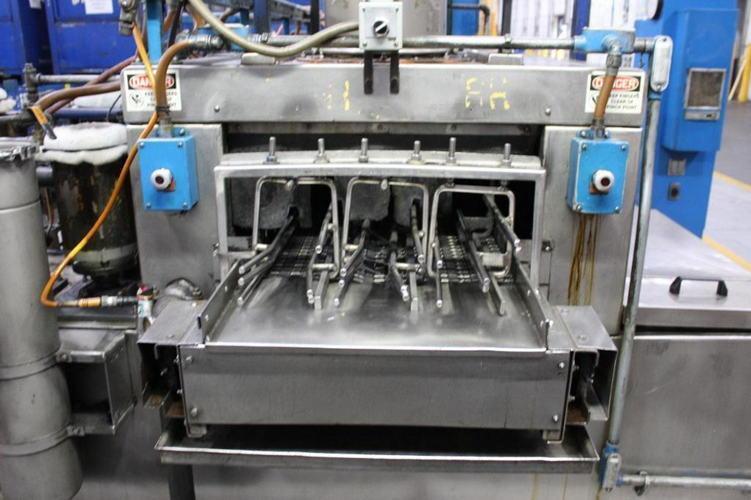

Currently divided into (3) lanes, but can be
easily removed for full 24" use
Load Height, Max.: 12"
Load / Unload Height: 36"

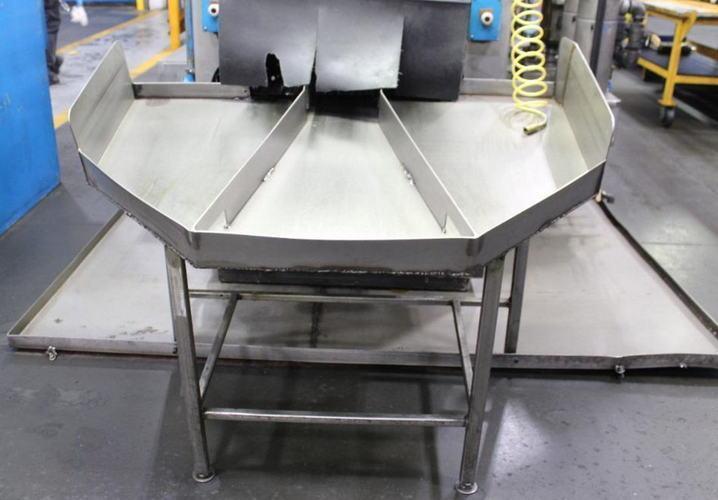

18" Loading Length
6' Wash:
(2) 480 Volt Lufran, 48kW Each
Drop-In Electic Heaters
472 Gallon Tank:

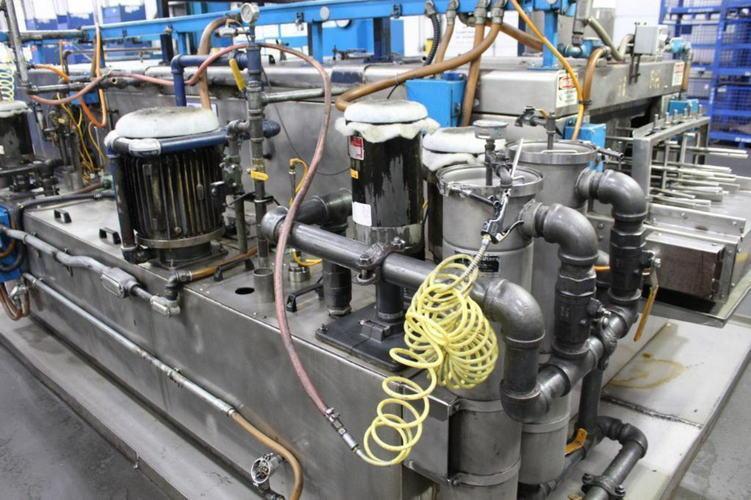

(2) 5 HP Pumps
(1) 20 HP High Pressure Pump

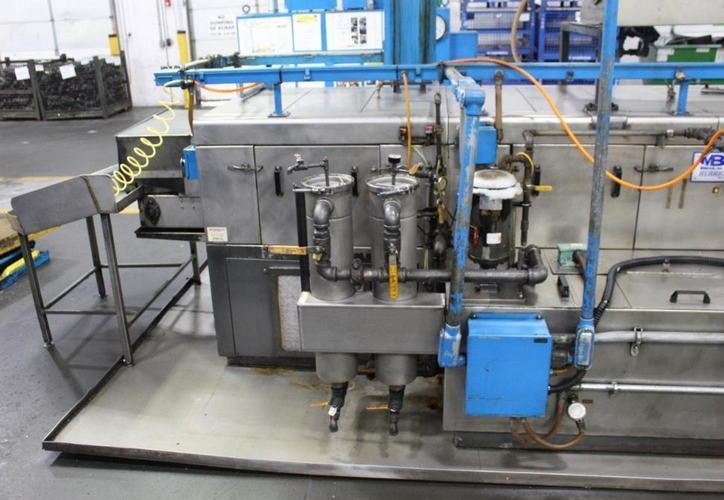

(2) Inline Superior Stainless Steel Filters
7" with 2" Outlet
100 Micron Filter Bag
Removable Chip Basket
(3) Pump Screens
Multi-Level Float Switch
145 Degree Operating Temperature
4' Rinse:
480 Volt Lufran, 48kW
Drop-In Electric Heater
283 Gallon Tank:
3 HP Pump
(2) Inline Superior Stainless Steel Filters
7" with 1 1/2" Outlet
100 Micron Filter Bag
Removeble Chip Basket
Pump Screen
Multi-Level Float Switch
145 Degree Operating Temperature
4' Regen Blow-Off, 18 HP Gast, 600 CFM @ 2 PSI
EQUIPPED WITH:
1" x 1" x 24" Standard Stainless Steel Flatwire Conveyor
18" Diameter Clean-Out Door, Each Tank
Suparator Model 240/001 With Suparskim that Separates Oil
from Wash Fluid, Water Content in the Removed Oil is
Reduced to Less Than 1%

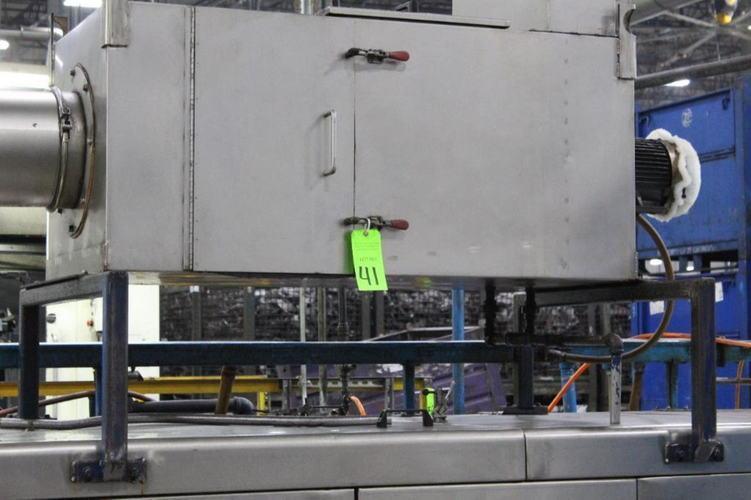

Upgraded with Top-Mounted Mist Removal with a 5 HP Blower
Lift-Off Access Doors
10 Ga. Stainless Steel Tank
Low Solution Level Detection
10 Ga. Stainless Steel with 2" Lip Containment Pan
with 1-1/2" Drain
NOTE:
The installation shown in the photos show a cool air
intake from the ceiling to mix with wash chamber air
to reduce air temperature going into the mist remover.
This helps precipitate the water from the incoming air
from the inside of the washer.
CURRENT REPLACEMENT COST PER MANUFACTURER IS $260,000
OVERALL DIMENSIONS: 142" W x 205" L x 150" (Est.) with
Mist Exhaust Top Discharge Attached
SHIPPING DIMENSIONS: 108" W x 205" L
105" (Est.) High with Mist Collector
85" (Est.) High without Mist Collector
