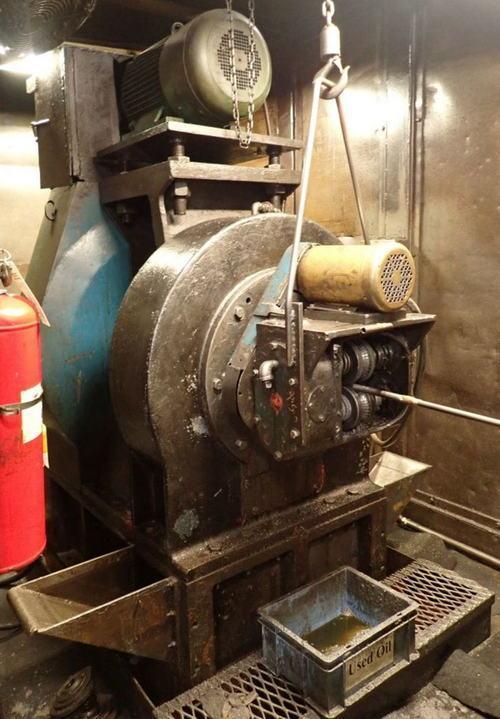

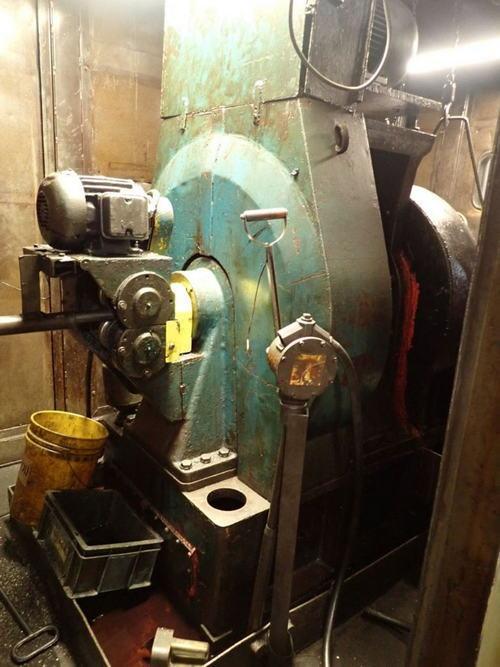

MODEL NUMBER: 208
SPECIFICATIONS:
Tube Capacity, Max.: 2"
Solid Capacity, Max. 1"
Diameter of Roll: 2-3/8"
Number of Rolls: 18"
Width of Die: 3-1/4"
Thickness of Die: 2-1/4"
Die Length: 8"
Flywheel Face: 6-1/2"
Flywheel Diameter: 41-1/8"
Number of Belts: 8
Diameter of Hole Through Spindle: 2-9/16"
RPM, Swager: 175
Hammer Blows Per Minute: 3150
Center Height: 40"
EQUIPPED WITH:

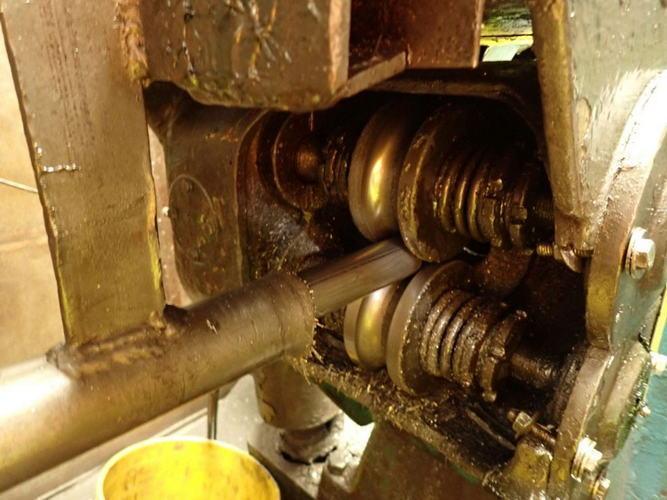

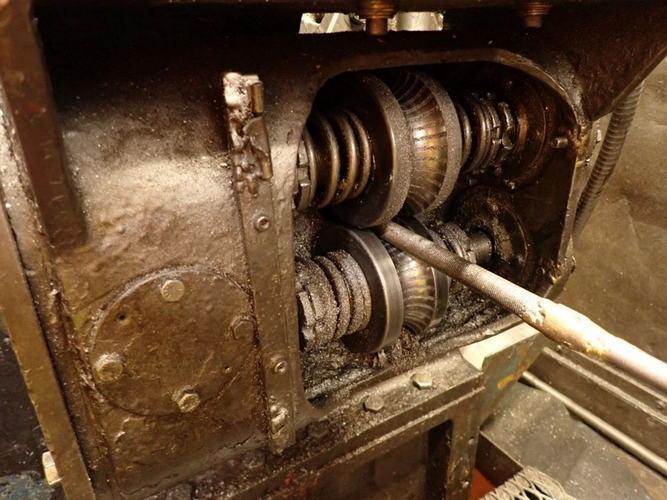

Powered Roll Feeds, Both Entry and Exit Sides
was Producing DOM Tubing
Automatic Die Cavity Lubrication

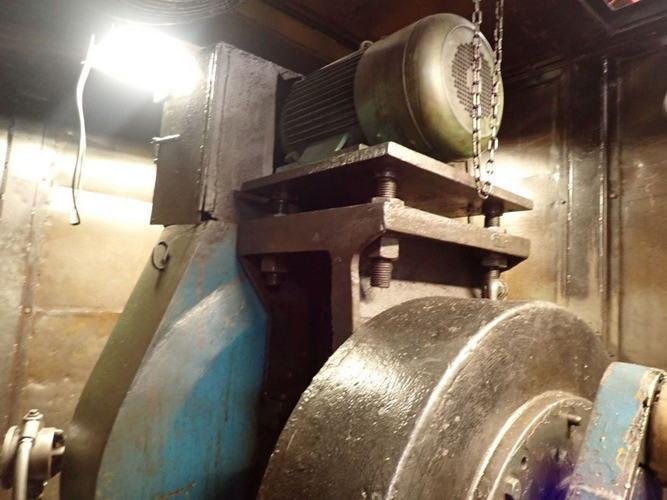

MOTOR DATA: 25 HP Main
(2) 2 HP Feed Roll Motors
WEIGHT: 17,500 Lbs.
