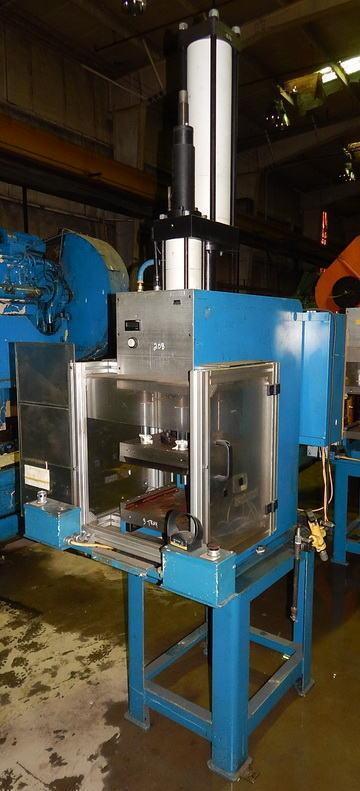

16 Ton FARGER & JOOSTEN MULTIPOWER Air/Oil Press
Serial Number: 2744
SPECIFICATIONS:
This is a Multipling type Air over Oil Press
See: https://farger-joosten.de
C-Frame Design
Tonnage: 16 Ton
Stroke: 7.9" (adjustable), the last .79" Power Stroke
Daylight Opening: 13"

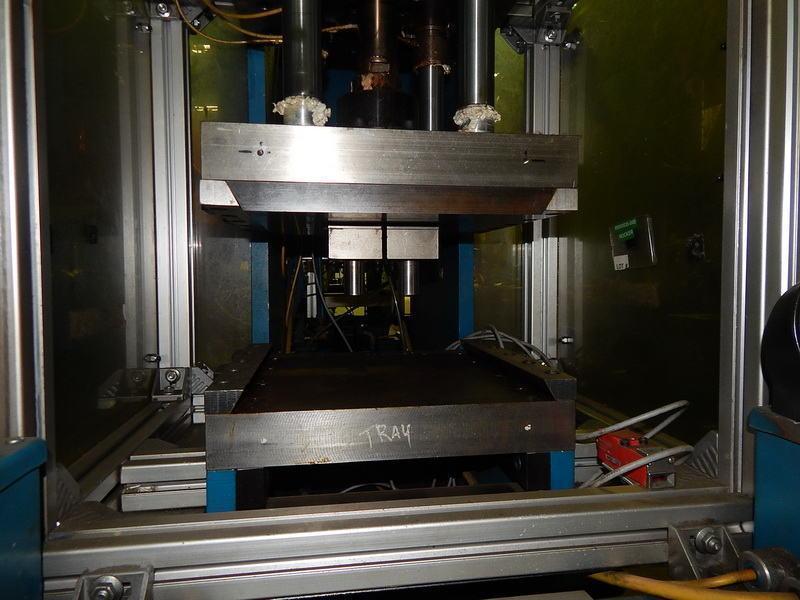

Bed & Ram: 14" x 14" x 2" Thick
Force in Approach Stroke: 1,260 lbs
Force in Retract Stroke: 1,260 lbs
Force in Power Stroke: 16 ton (US)
Pass Line, Floor to Top of Bed: 40"
NOTE: Power Unit is Fully Supported through Schmidt Presses,
Cranberry, PA
OVERALL DIMENSIONS: 34" LR x 50" FB x 125" High
