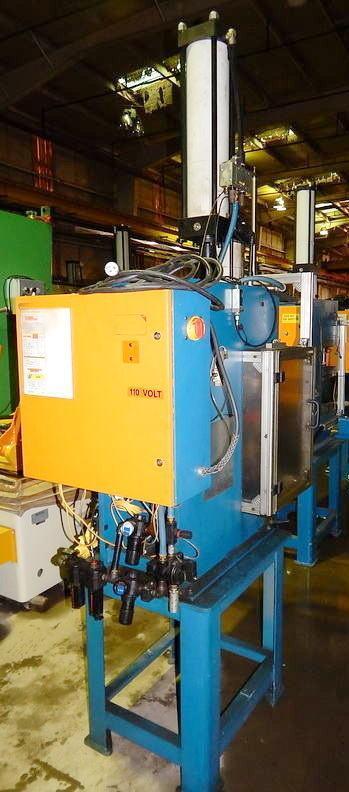

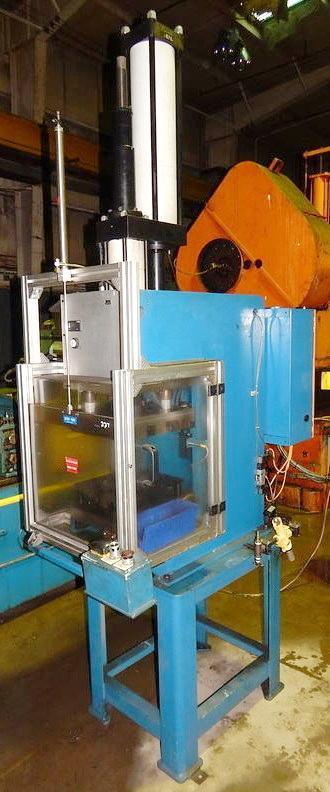

16 Ton FARGER & JOOSTEN MULTIPOWER Air/Oil Press
Serial Number: 2743
SPECIFICATIONS:

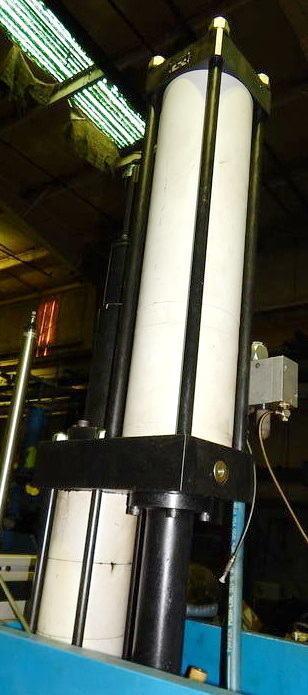

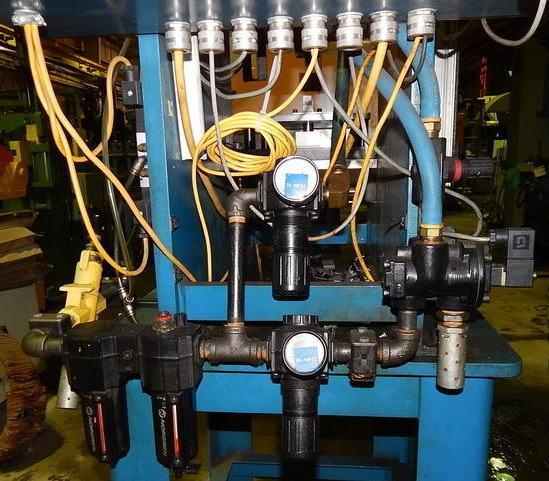

This is a Multipling type Air over Oil Press
C-Frame Design
Tonnage: 16 Ton
Stroke: 7.9", the last .79" is the Power Stroke
Daylight Opening: 13"

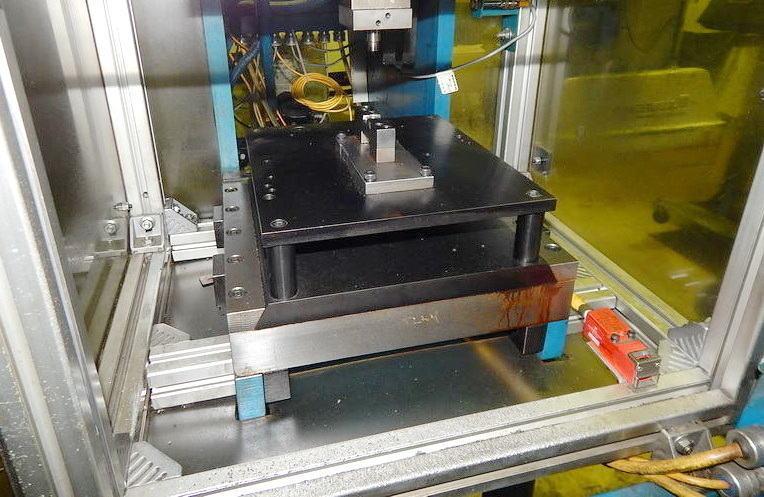

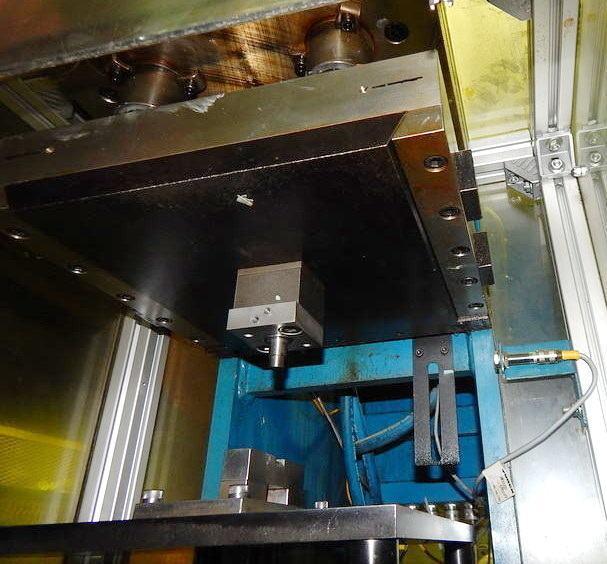

Bed & Ram: 14" x 14" x 2" Thick
Force in Approach Stroke: 1,260 lbs.
Force in Retract Stroke: 1,250 lbs.
Force in Power Stroke: 16 ton (US)
Pass Line, Floor to Top of Bed: 40"
NOTE: Full Factory Support through Schmidt Presses, Cranberry, PA
OVERALL DIMENSIONS: 34" LR x 50" FB x 125" High
