MODEL NUMBER: 50
SPECIFICATIONS:
Length, Stainless Steel Auger: 74"
Diameter: 15"
Pitch: 12"
Helix: 1-1/2" High
Rotary Drum has Variable Speed Control
12" Entry

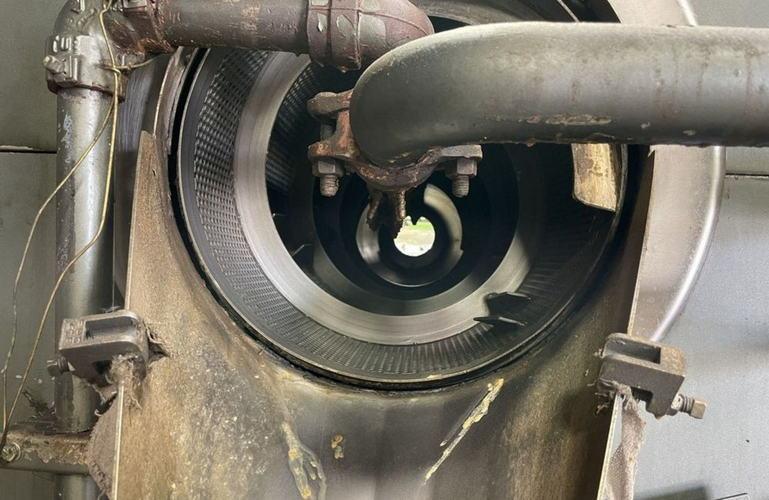

16" Of Inline Wash Nozzles
22" Drip Zone
20" Two Side by Side Rows of 34 Blow-Off Nozzles
4" Exit
Hole Perforations: 3/16"
2-Stage: Electrically Heated Wash w/ Regen. Blow-Off
Electrically Heated Cleaning Fluid Tank Equipped w/ Large
Rectangular Clean-Out Door

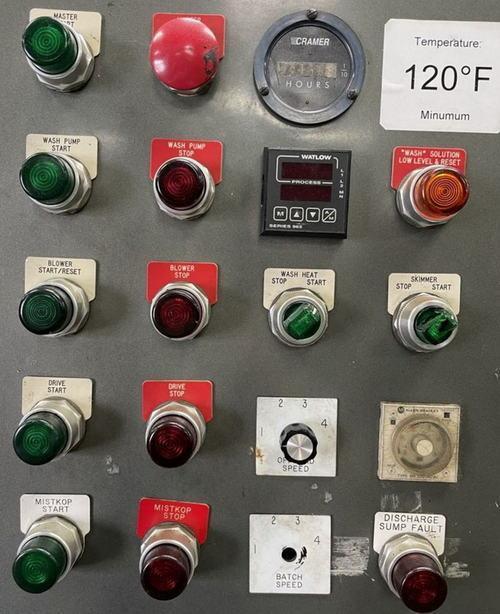

Watlow Digital Temperature Control
Rotary Wheel Type Oil Skimmer
Gast Mfg. Corp Regenair 5 HP Blower Equipped with Both
Blower Pressure and Blower Vacuum Gauges
Mistkop System (Wash Cabinet Mist Removal)
Motors: Baldor Drum Rotation Motor
Baldor 5 HP Blow-Off 208-230/460/3/60
Gusher 1/2 HP Pump 230-460/3/60
NOTE: This Washer is Set-Up for 480 Volt/3/60 Power
OVERALL DIMENSIONS: 84" L x 60" W x 90" High
WEIGHT: 3,500 Lbs.
