120 Ton FARGER & JOOSTEN MULTIPOWER Air/Oil Press

Manufacturer
Not Specified

Model

Stock #
Z23009P

Year

ORDER 120

Equipped With

120 Ton FARGER & JOOSTEN MULTIPOWER Air/Oil Press

 Serial Number: 2747
 SPECIFICATIONS:

 This is a Multipling type Air Over Oil Press
 See: http://farger-joosten.de

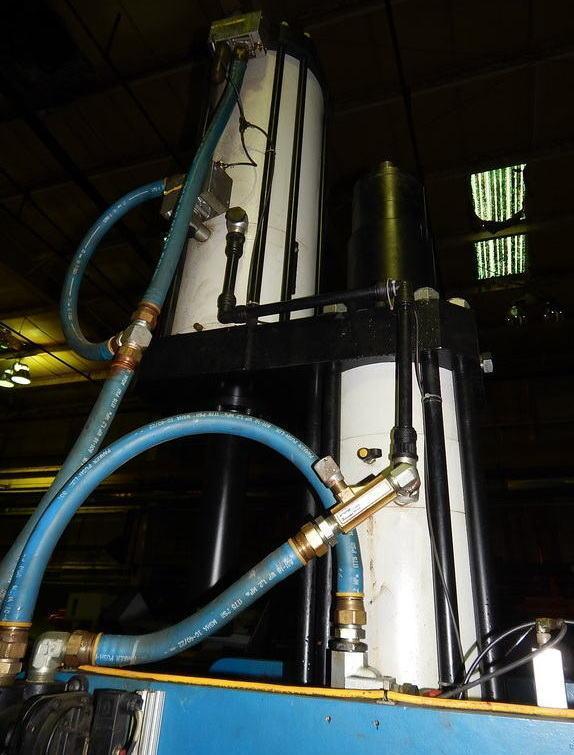

 NOTE: Will Sell Either Power Unit on the Mounting Plate with a
 Four Post Guided Ram or Ecerything at the same Price.  We will
 Remove, Pack, and Protect the Power Unit for Shipping

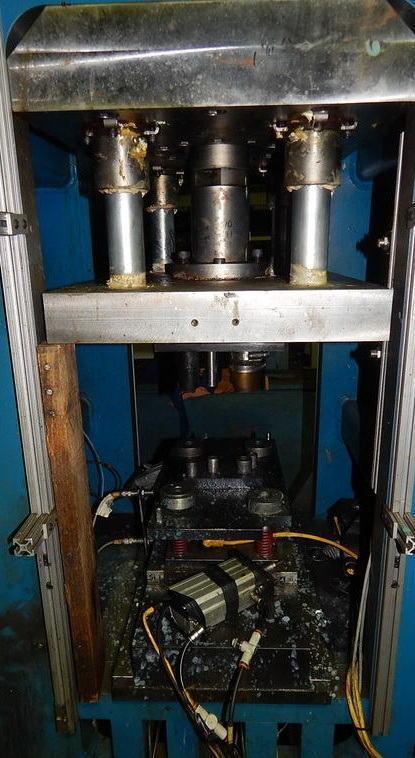

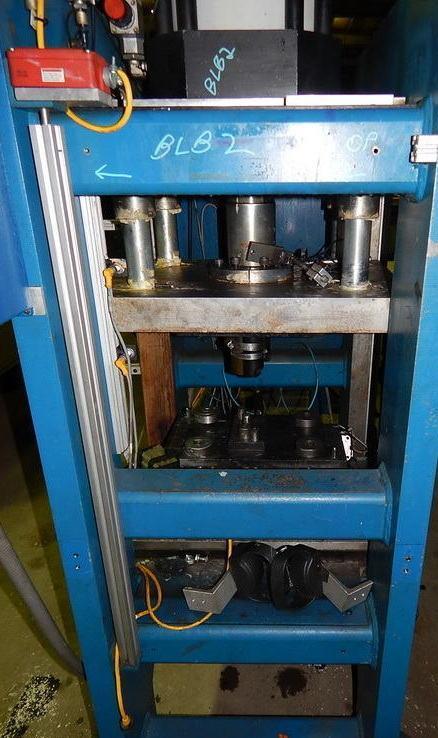

       Housing Style Press with a 4 Post Guided Ram

       Built for Side-to-Side Feed

       Tonnage, Est.:  120 Ton

       Stroke:  7.9" (adjustable), the last .79" Power Stroke
       Daylight Opening:  26"
       Bed:  24" LR x 17" FB x 2" Thick
       Ram:  24" LR x 17" FB x 2-1/2" Thick

       Force in Approach Stroke:  5,193 lbs
       Force in Retract Stroke:  5,019 lbs
       Force in Power Stroke:   120 ton (US)

       Pass Line, Floor to Top of Bed:  24"
       Windows, Both Sides, On Center of Bed:  18"
       Side Frame, Thickness:  2"
       Distance Inside Side Frames:  20"

 NOTE: Power Unit is Fully Supported through Schmidt Presses,
 Cranberry, PA

 OVERALL DIMENSIONS:  36" LR x 54" FB x 132" High
